Valve cartridges

FDY400T-01

Valve cartridge

Ask Yoyo about this model Back to valve cartridges
Original catalogue product photograph 1 for FDY400T-01
Original product photograph 1 · FDY400T-01

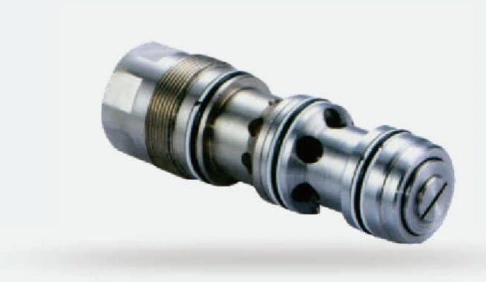

Original catalogue product photograph 2 for FDY400T-01
Original product photograph 2 · FDY400T-01
Catalogue data in English

Printed specifications.

English reference transcription from original PDF page 20, printed page 7. Visually transcribed from the supplied catalogue; not an independently verified operating specification.

No numerical technical specification is printed for this item.
The catalogue supplies a model label and product photograph only. Request the model-specific data sheet, materials, dimensions and interface details before selection. Do not infer ratings from the model code.

Confirm before ordering.

  • This catalogue panel supplies a product photograph and label only; pressure, flow, material, connection dimensions and operating limits are not stated in the panel. Request a model-specific drawing and data sheet.
  • The photograph is extracted from the catalogue row. The English label above identifies this item; the full bilingual source row is available in the catalogue download.
  • Two different photographs carry the same FDY400T-01 label in the catalogue. Confirm the required physical configuration; both original photographs are retained.
  • Both differently pictured versions are visible together in the same retained source row.

Drawing documentation.

Request an approved model-specific drawing with connection dimensions, units and revision before ordering.

  • The source labels two different photographs FDY400T-01. Both are retained; confirm the required physical configuration.

The source page supplies a product photograph and label only; no dimension drawing or hydraulic schematic is provided for this item.

Model-specific documentation

Certificate cross-reference.

No exact model-label match was found among the 25 certificate scans supplied in this catalogue. This does not establish that the product is uncertified. Request the current document for the exact model; do not substitute a certificate for a similar-looking valve.
